We specialize in new bottle developing, sample bottle measuring, design and machining. All bottle moulds supplied with uniform dimensions and mirror finished cavity.
Some moulds are made to fit kinds of blowing machinery which are one-stage or two-stage. The moulds are widely used for mineral water, carbonate, juice and not filling package. We can also help customers for their factory or production line design.
Use of ZQ-B Series.
ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to six cavities and the maximum capacity of the products is 0.6L, 2.0L, 5L and 10L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
Plastic bottle blowing mold apply to stretch blow moulding machine,equipment information.
| TYPE | ITEM | ZQ-B600-6 | ZQ-B600-8 | ZQ-B1500-6 | ZQ-B5000-4 | ZQ-B10000-2 |
| CONTAINER | Number of cavity | 6 cavities | 8 cavities | 6 cavities | 4cavities | 2cavities |
| Output | 7000-8000 pcs/hr | 9000-11000Â Â Â pcs/hr | 5500-6000 pcs/hr | 2000-2200 pcs/hr | 800-900 pcs/hr | |
| Max.container volume | 0.6L | 0.6L | 2.0L | 5L | 10L | |
| Max.neck diameter | 28-30mm | 28-30mm | 38mm | 45-80mm | 45-80mm | |
| Max.container diameter | 60mm | 60mm | 105mm | 180mm | 220mm | |
| Max.container height | 260mm | 260mm | 300-330mm | 350mm | 400mm | |
| ELECTRICAL SYSTEM | Number of lamp | 56pcs | 48pcs | 90pcs | 60pcs | 54pcs |
| Max.heating power | 34kw | 48kw | 90kw | 60kw | 48kw | |
| Installation power | 48kw | 56kw | 96kw | 100kw | 55kw | |
| Actual power consumption | 24kw | 45kw | 60-70kw | 36kw | 38kw | |
| AIR SYSTEM | Operatating pressure | 7-8kg/cm² | 7-8kg/cm² | 7-9kg/cm² | 7-9kg/cm² | 7-9kg/cm² |
| Low pressure consuming | 1600Ltr/min | 2000Ltr/min | 3000Ltr/min | 2600Ltr/min | 2200Ltr/min | |
| Blowing pressure | 25-35kg/cm² | 25-35kg/cm² | 25-35kg/cm² | 25-35kg/cm² | 25-35kg/cm² | |
| High pressure consuming | 2000-2200 Ltr/min | 2300-2500 Ltr/min | 4500-5000 Ltr/min | 4500-5000 Ltr/min | 2500-3000 Ltr/min | |
| CHILLER WATER | Operating pressure | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² |
| Temperatuer | 10ºC | 10°C | 10ºC | 10ºC | 10ºC | |
| Consuming | 8000kcal/hr | 8000kcal/hr | 25200 kcal/hr | 6600kcal/hr | 9000kcal/hr | |
| Flow rater | 88Ltr/min | 200Ltr/min | 200Ltr/min | 45Ltr/min | 50Ltr/min | |
| MACHINE | Machine dimension | 5.0x2.1x2.1(m) | 6.9x2.2x2.1(m) | 7.3x2.2x2.1(m) | 5.6x2.1x2.1(m) | 5.5x2.0x2.0(m) |
| Machine weight | 5.0ton | 6.5ton | 6.35ton | 5.5ton | 4.0ton |
Note: Custom production accepted. Any client idea tried.Â
Â

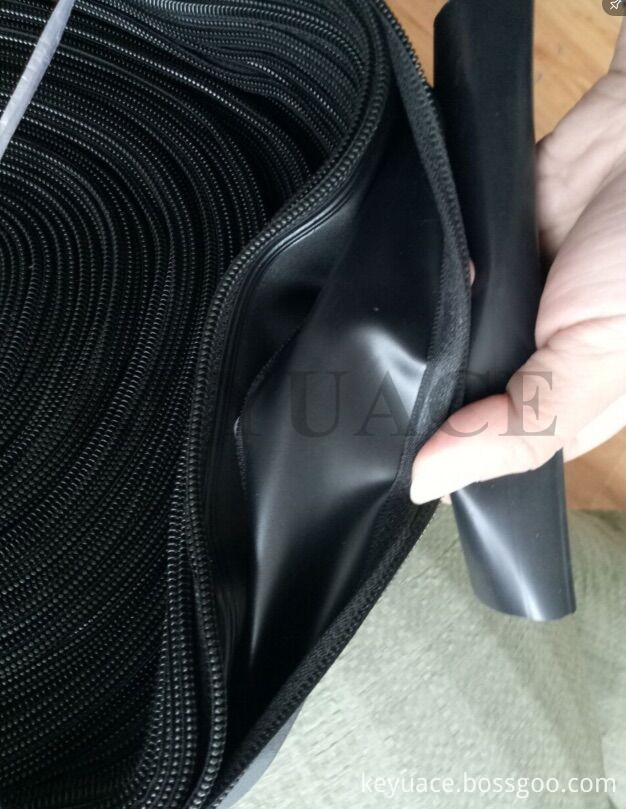

PVC Wire Harness Protecting Sleeving
1.PVC Protection Sleeving, Bundles cables at any point along the run, easily avoiding large connectors and plugs for quick and easy
installation
2.Zipper Wire Harness Sleeving, provides maximum security for cables, unlike other side-entry or split braided sleeving that can easily
be removed by accident
3. Wire Protection Sleeve, Heavy duty pvc construction ensures great durability
4. Wire Harness Protecting Sleeving and Cloth Wire Sleeving is ideal for quick and easy cable management in homes, offices, and even industrial facilities.
5.Certificated by UL,ROHS, REACH,HALOGEN FREE
What is the Details of our Zip Up PVC Cable Sleeving?
|
Usage |
Cable/wire Bundling,Protection,Management Solution |
|
FOR what Field |
Ideal for quick and easy cable management in homes, offices, and even industrial facilities |
|
Sleeve Material |
PVC |
|
Zipper Material |
PVC |
|
Size |
25mm ID*3mL |
|
Color |
Black |
|
Packaging |
1pc/zipr bag,100PCS/Ctn,18.50Kgs/Ctn |
| Carton Size | 53*53*40cm or customized |
| Free Sample | Available |
| Full Size Sample Lead time | As usual 3-7 working days |
| Production Lead time | 10-15days |
Application:
Wire Harness Protecting Sleeving
PVC Protection Sleeving,Wire Harness Sleeving,Wire Protection Sleeve,Cloth Wire Sleeving
