 Main functions and Parameter | ||
|
Model# |
Automatic Loader |
|
|
Item |
Name |
Description |
|
1 |
Automatic Loader                    |
1) Dimensions: 1450(L)×680(W)×1650(H)mm |
|
 |
 |
2) Special Aluminum alloy guide rails and rubber belt |
|
 |
 |
3)Magazine lifting with screw rod by 90WSPG electric-brake motor |
|
 |
 |
4)Pneumatic PCB clamping structure |
|
 |
 |
5)Magazine dimensions: 300(W)×340(L)×570(H)mm |
|
 |
 |
6)PCB size: 60(W)×60(L)mm--250(W)×300(L)mm |
|
 |
 |
7)Direction:Â L-R/Â R-L |
|
 |
 |
8)Adjustable Lifting distance:10,20,30,40 and 50mm |
|
 |
 |
9)Programmable Siemens PLC and controller |
|
 |
 |
10)PCB Automatic loading to conveyor |
|
 |
 |
11)Touch Panel controlled interface/Buttons interface |
|
 |
 |
12)Working power 0.25KW |
|
 |
 |
13)Power Source: 220v 50HZ |
|
 |
 |
14)Air Source: 4-6MPa |
 Features:
1. Micro computer controlled component ensures machine's stable and reliable running.
2.Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
3.Multiple sound and light alarming functions
4.Use standard magazines, good compatibility, load with 3 magazines at one time.Â
5. Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
6.Loader configured with inner push board component, save the cost of buying PCB moving machine independently.
7.Automatic counting function make it easy of production statistic
8. Optional SMEMA port for communication between machines.Â
Deep Groove Ball Bearing is the most common type among ball bearings.The basic structure of deep groove Ball Bearing include an outer ring,an inner ring, a group of steel ball and a set of cage. Deep groove ball bearing has two types: single row and double rows bearings. 6900-2RS bearing is made of Chrome Steel, 6900-2RS bearing is closed with rubber seals to protect the bearing from dust or any possible contamination, 6900-2RS bearing is self lubricated bearing,6900-2RS bearing is already greased.
|
Model Number |
6900 Series |
| Brand Name | NMN OR OEM |
| Type | Ball Bearing |
| Structure | Deep Groove |
| Number of Row | Single Row |
| Seals Type | OPEN ZZ 2RS |
| Precision Rating | P0 P6 P5 P4 |
| Specification | 6900 To 6910 |
| Steel Ball Amount | 9-14. Depend on the ball size |
|
Chamfer |
0.3-0.6mm |
|
Application |
Machine & Rolling Mill |
|
Certification |
ISO9001:2008 |
| ODM and OEM | To order |
| MOQ | 1 sample. Please contact with us for the lastest MOQ |
| Payment Terms | L/C, T/T, Western Untion, PayPal, Bank, etc. |
| Packing |
Depend on the items. We also can packing it as your request |

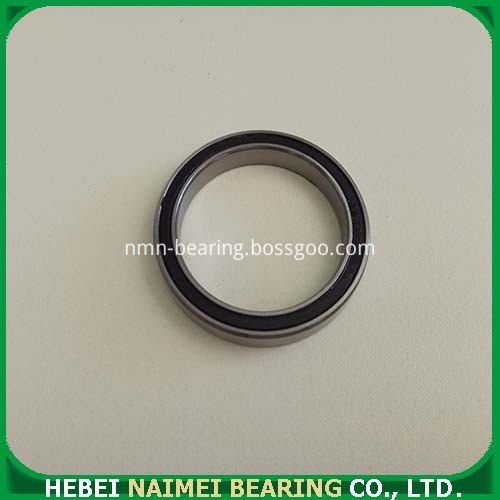

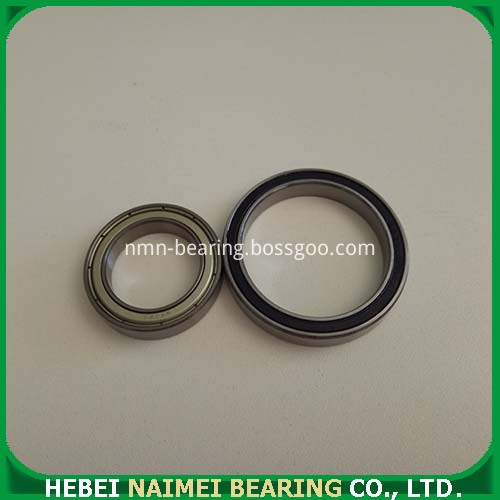

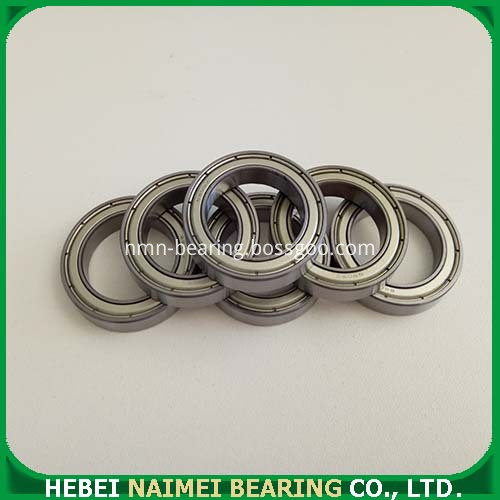

Product Photo:
Bearing number
Bore
O.D
Width
Chamfer
Load Rating
Ball complement
Maximum Seed
Kg/pc
mm
mm
mm
mm
Dynamic
Static
No.
Size
Grease
Oil
6900
10
22
6
0.5
2.7
1.27
12
2.381
2500
32000
0.009
6901
12
24
6
0.5
2.89
1.46
9
3.5
20000
28000
0.011
6902
15
28
6
0.5
4.1
2.06
10
3.969
19000
26000
0.016
6903
17
30
7
0.5
4.65
2.58
11
3.969
18000
24000
0.018
6904
20
37
7
0.5
6.4
3.7
11
4.763
17000
22000
0.036
6905
25
42
9
0.5
7.05
4.56
13
4.763
14000
18000
0.042
6906
30
47
9
0.6
7.25
5
14
4.763
12000
16000
0.148
6907
35
55
10
0.6
11.2
7.45
14
5.556
10000
14000
0.074
6908
40
62
12
0.6
14.5
10.2
14
6.747
8000
12000
0.11
6909
45
68
12
0.6
15.1
11.2
15
6.747
6000
10000
0.128
6910
50
72
12
0.6
15.6
12.2
16
6.747
4000
8000
0.132
Packing:
1 Industry package: 200pcs/plastic bag, 2000pcs /carbon , 50 cartons/pallet ,
2 Tube Package: 10PCS/tube,then put in Carton and Pallet
3 Single Package: 1PC/single box, then put in Carton and Pallet
And also we can pack according to your requirement.
Packing Photo:
Workshop:
Shippment:
Exhibition:
6900 Series Deep Groove Ball Bearing
